Field Fence

Field Fence, also known as farm fence, is a woven wire fence designed for large-scale pasture and agricultural use. Produced from galvanized steel wire with graduated mesh openings, it provides reliable containment for livestock and helps protect crops from animal intrusion. The fence uses hinge joint or fixed knot construction to absorb animal pressure while keeping the mesh tight and secure. Available in heights from 0.9 m to 2.4 m and rolls up to 100 m, Field Fence offers strong corrosion resistance and long service life in outdoor environments. It is an economical fencing solution for farms, ranches, and rural perimeter control.

Features

High Tensile Strength

Made from low or high carbon steel wire to withstand impact from cattle, horses, goats, and other large animals without deforming.

Flexible Woven Structure

Hinge or fixed knots allow the mesh to flex under load and recover shape, preventing wire breakage and joint failure common in welded fences.

Corrosion-Resistant Coating

Electro-galvanized or hot-dip galvanized finish (Zn or Zn-Al alloy) provides excellent protection against rust and weathering.

Uniform Mesh Spacing

Consistent horizontal and vertical wire spacing keeps livestock contained and helps deter predators from entering grazing areas.

Easy Installation on Any Terrain

Lightweight rolls uncoil easily and conform to uneven ground, making long-distance fencing fast and efficient.

Weatherproof Performance

Resists sun exposure, rain, wind, and temperature fluctuations without reducing fence strength.

Long Service Life

The woven construction avoids weld points that can crack, ensuring long-term durability in demanding pasture conditions.

Specifications

Material: Low carbon steel / high carbon high-tensile steel wire

Surface Treatment: Electro-galvanized or hot-dip galvanized (Zn or Zn-Al alloy)

Wire Diameter:

• Mesh wire: 1.8 – 2.5 mm

• Edge wire: 2.0 – 3.2 mm

Mesh Opening (cm):

• Warp spacing: 15 / 14 / 13 / 11 / 10 / 8 / 6

• Weft spacing: 15 / 18 / 20 / 40 / 50 / 60 / 65

Fence Height Options: 0.8 m, 1.0 m, 1.2 m, 1.5 m, 1.7 m, 2.0 m(Custom dimensions available)

Roll Length: 50 m – 200 m depending on project scope

Popular Types

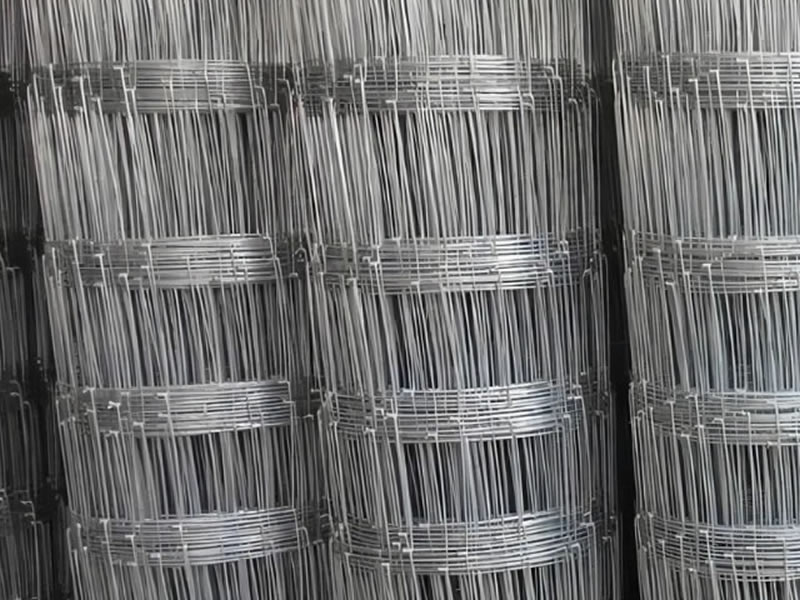

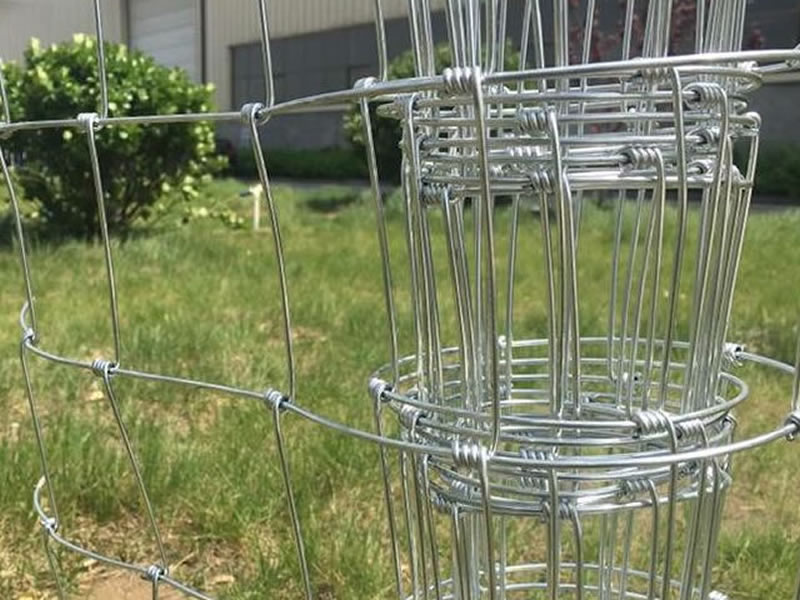

1. Hinge Joint Field Fence

• Provides flexible movement under pressure

• Ideal for cattle, goats, and mixed pasture fencing

• Returns to original shape after impact

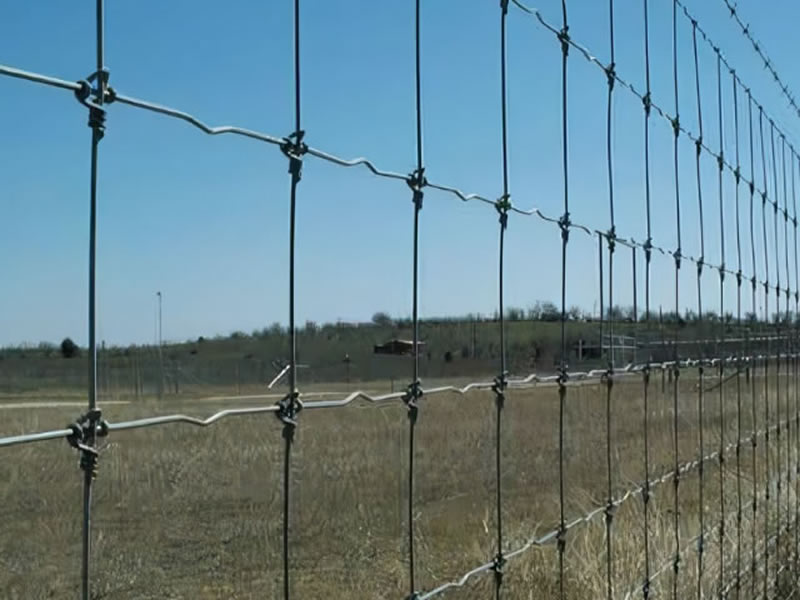

2. Fixed Knot Field Fence

• Maximum durability and resistance to animal force

• Designed for deer, cattle, and intensive grazing areas

• Superior lifespan in high-pressure environments

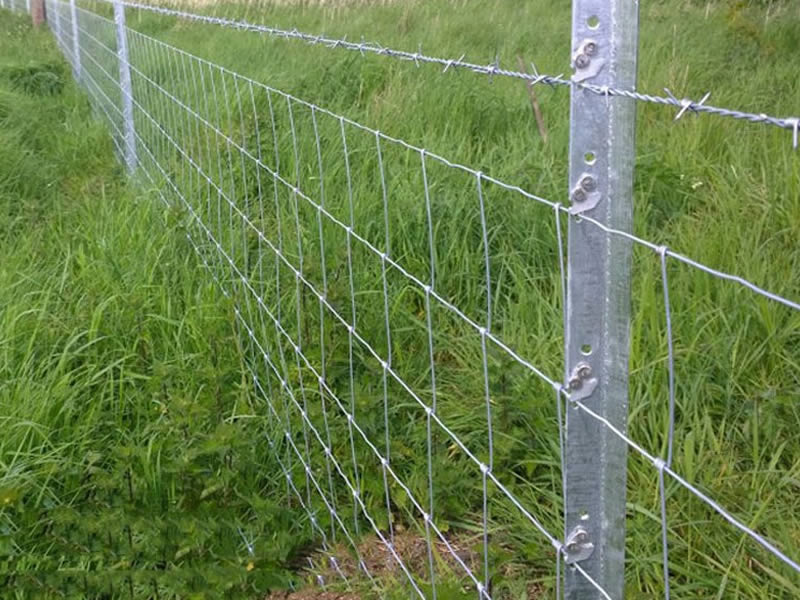

3. Y-Post Support System

• Stable in uneven or rocky terrain

• Resists wind and animal contact

• Suited for long, straight fences and field boundaries

Applications

Livestock Management

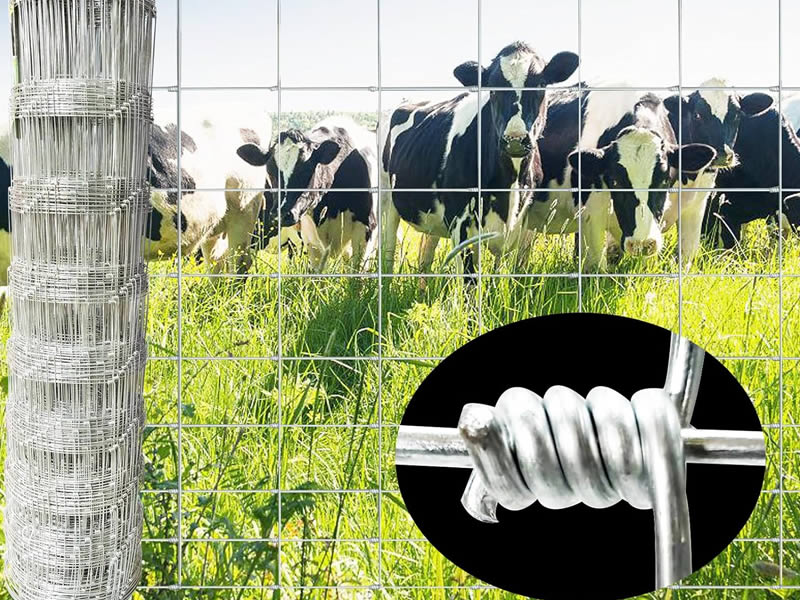

• Enclosures for cattle, sheep, goats, horses, and deer

• Safe fencing for mixed grazing pastures

Poultry & Small Animal Areas

• Yards for chickens, ducks, geese, rabbits, and similar animals

Farm & Ranch Use

• Pasture fencing, ranch boundaries, grassland protection

Forestry & Wildlife Control

• Barrier fencing for young trees, reforestation, and wildlife exclusion

Rural Boundary & Perimeter

• Protects gardens, fields, and farm infrastructure

• Highway, roadside, and greenbelt fencing
